READ BEFORE ORDERING.
*NCASE M1 Vertical GPU Mounting Bracket requires cutting hole in rear of NCASE chassis for the monitor cable(s)
*This product wasn't designed for all NCASE system configurations. Bracket adds 1/2" length to your video card.
*Requires low profile CPU cooler (75mm or shorter) like the CRYORIG C7 used for the M1 build pictured on this page.
*A PCI-E riser cable is required to connect your video card to motherboard and sold separately as add-on.

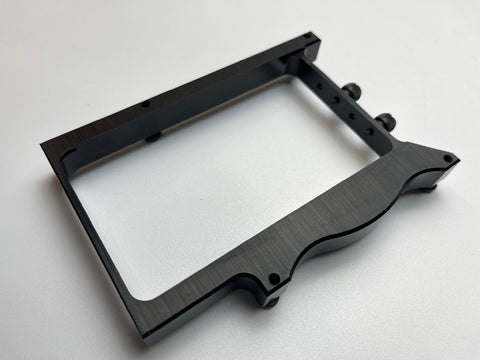

Mnpctech 3.0 NCASE M1 Vertical GPU Mounting Bracket allows Triple PCI Slot GPU's.
Includes Four Mounting Screws and Thumb Screws for GPU.

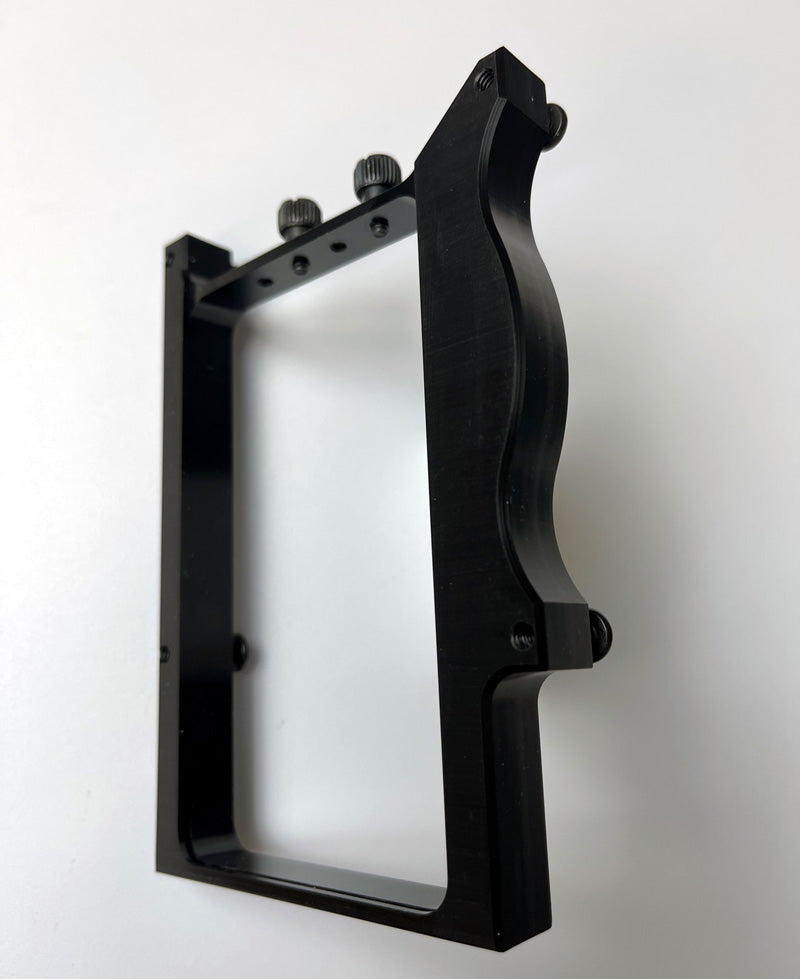

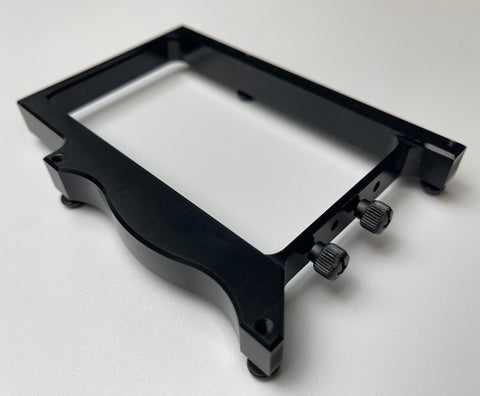

NCASE M1 Vertical SFF Mini ITX Case GPU Mounting Bracket 3.0 is CNC machined in Mnpctech's workshop from 6061 aluminum for maximum strength.
*NCASE M1 Vertical GPU Bracket Measures .5" (12.7mm) thick x 3.5" (85.7mm) wide x 5" (88.9mm) tall.
*Fits all GPU brands and models, including triple PCI slot.
*A PCI-E riser cable is required to connect your video card to motherboard and sold separately as add-on in your NCASE M1 custom PC build.
Includes four 8/32 philips head machine screws for mounting.
Version 3.0 Compact Vertical GPU Bracket. Added support for larger cards.

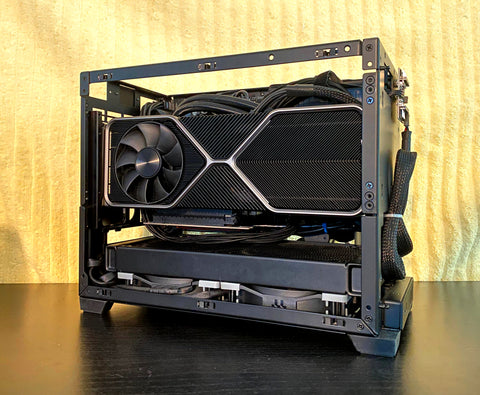

aka_Cutty's "toTaLlY done" NCASE M1 SFF ITX Case PC build with RTX 3080 FE.
Mnpctech's Silver NCASE M1 Vertical GPU mounting bracket is first ever introduced to the custom PC market. It was designed and made by Mnpctech 01/08/2017 in Minneapolis, Minnesota. Select "Notify" on this page, so you are emailed when this product is released.
Basic steps required to use Mnpctech Vertical GPU Mounting Bracket in the NCASE M1 SFF Mini ITX PC Case.
Use Metal Shear or Tin Snips to remove rear exhaust fan grill on M1.
File edges after cutting M1 case horizontal exhaust grill pieces.
Now you are ready to use Mnpctech Vertical NCASE M1 GPU Mount.
